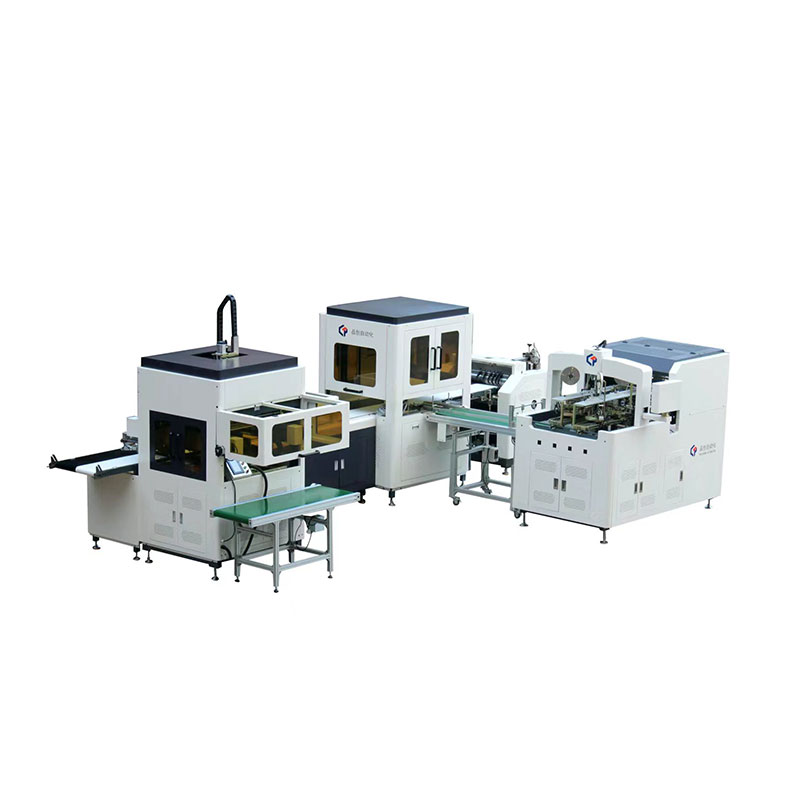

Automatic Rigid Box Making Machine PC-5040B

Camera Positioning System

Camera positioning and mechanical arm clamping box to achieve high-precision positioning.



Digital Adjustment Of Sizes

Adopt new design of serve and pneumatic structura to wrap the box,fast digital acjustment of sizes.



Servo Controlled Paper Feeder

New designed serve controlled paper feeder adopts post-sucking pre-pushing type to convey paper which efficiently avoids two pieces of papers entering into the machine.



Line-touch Designed Copper Scraper

The copper scraper cooperates with the glue roller by line-touch design which makes the scraper more durable.



Glue Viscosity Meter (Optional)

Auto glue viscosity meter efficiently adjusts the glue stickiness which ensures the quality of finished products.

Availability:
Quantity:

Machine Description:


PC-5040B can automatically one box paper feeding, box corner taping, box Machine adopt the yamaha positioning system to have high accuracy and improve the production efficiency.

PC-5040B can do the  jewelry box, mobile phone box, sweet box, gift box,tea box,watch box, belt box, cosmetic box, Chocolate box,mooncake box etc.

Automatic Rigid Box Making Machine PC-5040B






Technical Parameter



Model No

PC-5040B

Paper size

Length:140-800mm

Width:100-600mm

Paper Thickness

80-300g/㎡

Paper Stacking Height

500mm

Max Box Size

L500*W400*H120mm

Min Box Size

L65*W65*H20mm

Ear Folding Size

10-100mm

Paper Turn in depth

10-80mm

Cardboard thickness

1-3mm

Max Cardboard Size

L700*W600mm

Cardboard stacking Height

1000mm

Production speed

18-25pcs/min

Positioning Precision

+-0.1mm

Motor Power

15kw/380V 3phase

Air supply

30L/min 0.8Mpa

Heating Power

6kw

Machine dimension

L8200*W4200*H2150mm

Machine Weight

4900kg



Production Flow

The PC-5040B automatic rigid box making machine streamlines the box production process through precise automation. It efficiently folds, glues, and shapes cardboard into high-quality boxes, ensuring consistent size and strength. With customizable features, it adapts to various designs, enhancing productivity and meeting diverse packaging needs.


Automatic Rigid Box Making Machine PC-5040B Flowchart of box making


Machine Detail Display

The PC-5040B Automatic Rigid Box Making Machine is equipped with advanced features designed to enhance performance and precision. Key components include a servo motor for controlled paper feeding, a Japanese-made Yamaha robotic arm for accurate positioning, and a Panasonic PLC for reliable operation. Optional enhancements such as a glue viscosity meter and a camera for box image capture ensure consistency, while Airtac cylinders and valves contribute to efficient automation.

The details of the Automatic Rigid Box Making Machine PC-5040B, including: Servo motor controlled Paper Feeding, Japanese made Yamaha Robotic Arm Positioning, Panasonic PLC, Glue Viscosity Meter (Optional), Camera Capture box image and fixed type once set, Airtac Cylinder & Walve




Machine Application



Product pictures of boxes made by our machines





 Machine Structure Features

●  Camera Positioning System

Camera positioning and mechanical arm clamping box to achieve high-precision positioning.


●  Digital Adjustment Of Sizes

Adopt new design of serve and pneumatic structura to wrap the box,fast digital acjustment of sizes.


●  Servo Controlled Paper Feeder

New designed serve controlled paper feeder adopts post-sucking pre-pushing type to convey paper which efficiently avoids two pieces of papers entering into the machine.


●  Line-touch Designed Copper Scraper

The copper scraper cooperates with the glue roller by line-touch design which makes the scraper more durable.


●  Glue Viscosity Meter (Optional)

Auto glue viscosity meter efficiently adjusts the glue stickiness which ensures the quality of finished products.




 Pre-sales Questions



01. Is your company is trader or factory?

We are the direct manufacturer of the rigid box and book cover making machine with 16 years experience.


02. Where is your company in china?

Our Factory located in Zhongtang Town, Dongguan City, Guandong Province, China. We are near to shenzhen airport and guangzhou airport.


03. What does your machine make?

Our machine is to make the shoe box, tea box, cosmetic box, jewelry box, gift box,watch box, mobile phone box,gift box,flower box , belt box,chocolate box, sweet box, lever arch file cover, hardbook cover. Hardcover making etc.


04. What are the main spare parts used in your machine?

Our machine used the high end spare parts in our machine, like the Panasonic PLC, the Omron Relay, the schneider electronics, the Delta Servo motor&drive, the Airtac Cylinder&walves, the Yamaha Robotic Arm, Dell Computer etc.


05. How to offer the after sale service if we purchase your machine?

All our machine has english manual and video operationing video for support customer installation and training. If customer need technician come to their country for training, we have technician team for overseas training.


06. How to recommend products?

We have nearly 20 products . We can also provide non-standard equipment production and new product development services according to customer requirements. According to the customer's requirement to be produced, the purpose of the product to be purchased, the environment, the purchase volume and other related conditions, we will recommend several cost-effective products for the customer to choose.


07. How to make a quotation?

Based on our company's research and development costs, production costs and customer purchases, we conduct calculations to determine the price of the product.


08. If we send the box paper and cardboard, Your machine can make a trial running?

Yes, we can try your box run in our machine, we can make the box mold for your for free.




 Problems in Sale


01. About payment

After signing the contract, 30% of the total payment will be paid in advance, 70% should be paid before machine shipment.


02. About delivery time

About 7-15 working days after receiving the deposit. the factory will re-decide whether to change the delivery date when the order is confirmed. The standard machine is generally within 7 working days after receiving the deposit.


03. Order tracking

After the customer places an order, our company will send professional personnel to track the order and regularly report the production progress to the customer.


04. Product testing

During the production process, our company will adopt strict inspection process to ensure product quality. Through internal inspection, we ensure that the components produced by our company meet the technical requirements; through external inspection, we ensure that the components produced by our company are not subject to quality problems; and then pass the whole machine inspection to ensure that the mechanical equipment meets the technical production requirements .


05. Product packaging

Before the product is shipped, it will be packed by film and then we will use the plywood case for the package.


06. Product Transportation

Products are generally shipped from Shenzhen Port, China to the destination port by sea




 After Sales Question



01. Shelf life/warranty period of the product

The product warranty period is generally one year, and our company provides lifetime maintenance services. If the machine has quality problems, our company will help the customer to solve it through the following ways: a. Send spare parts to the customer. b. Remotely assist customers in maintenance. c. Notify our agent company to send personnel to the customer's factory for maintenance. d. Our company directly dispatches relevant personnel to the customer's factory for maintenance.


02. About transportation damage

In the process of product transportation, if product damage occurs, it is determined that our product packaging and reinforcement work is not in place, and our company will bear the corresponding losses.


03. About machine maintenance

We will contact customers on a regular basis on how to maintain and maintain the machine. For domestic customers, we will have a master to provide on-site service.


04. Problems during use

If there is any problem in the process of using the product, the customer can directly call or send an email to our after-sales department (24-hour hotline). The personnel of our department will respond immediately and make a decision on the response measures within 24 hours.
