Corrugated Box Styles: Types, FEFCO & Choosing Guide

Views: 17     Author: Site Editor     Publish Time: 2025-04-25      Origin: Site

Think about the sheer variety of boxes you encounter every day – the sturdy shipping carton that arrives at your door, the elegant product box pulled from a shelf, or the clever mailer that unfolds to reveal its contents. While the material itself (corrugated board) provides the strength, the shape and structure of the box – its style – is what defines its function, how it's assembled, and its overall effectiveness in protecting and presenting the product within.

Understanding the different corrugated box styles available is essential for anyone involved in packaging decisions. The right style ensures product safety, optimizes shipping efficiency, controls costs, and contributes to the customer's unboxing experience.

This ultimate guide will walk you through the world of corrugated box styles, introduce you to the international standard classification system (FEFCO), detail the most common box types and their applications, and provide practical advice on selecting the perfect style for your specific needs.

The Standard Language: Understanding FEFCO Codes

With countless ways to design a corrugated box, a standardized system is crucial for clear communication between designers, manufacturers, and customers worldwide. This is where the FEFCO-ASSCO Code system comes in. Developed by the European Federation of Corrugated Board Manufacturers (FEFCO) and the International Corrugated Case Association (ASSCO), it provides a common language for corrugated packaging designs.

FEFCO Codes

The FEFCO code is a 4-digit number assigned to each standardized design. The first two digits indicate the series or category of the box style, while the last two digits specify the exact design within that series. This system simplifies ordering, manufacturing, and understanding complex box structures.

While there are many codes, they are grouped into main series representing fundamental structural types:

  • 01 Series: Commercial Rolls and Sheets (not box styles themselves)

  • 02 Series: Slotted Type Boxes - Formed from one piece with a manufacturer's joint, top and bottom flaps. Shipped flat, require closure. (The most common group)

  • 03 Series: Telescope Type Boxes - Consist of more than one piece, characterized by a lid and/or bottom telescoping over the body.

  • 04 Series: Folder Type Boxes and Trays - Usually one piece, folding to form the bottom, sides, and lid.

  • 05 Series: Slide Type Boxes - Consist of several pieces sliding in different directions into each other.

  • 06 Series: Rigid Type Boxes (Bliss Boxes) - Consist of two separate end pieces and a body, require stitching or similar operation to assemble the basic structure before closing.

  • 07 Series: Ready-Glued Cases (Automatic Bottom Boxes) - Consist basically of one piece, are shipped flat, and can be erected ready for use by simply setting them up.

  • 09 Series: Interior Packaging - Includes pads, partitions, dividers, etc.

Understanding these series provides a framework for the vast number of specific box designs.

Decoding Common Box Styles: Detailed Explanation and FEFCO Association

While the FEFCO library contains hundreds of codes, a handful of styles are used for the majority of corrugated packaging applications. Let's explore these common heroes of the packaging world and their corresponding FEFCO codes.

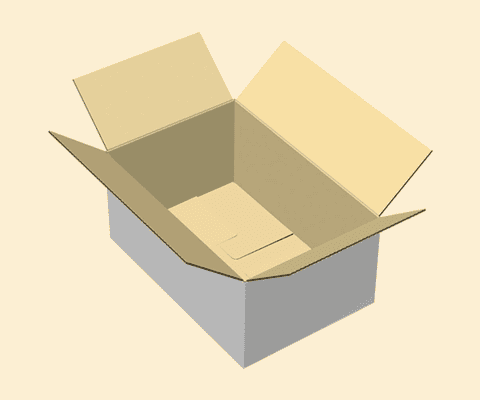

Regular Slotted Container (RSC) - FEFCO 0201

Regular Slotted Container (RSC)

  • Description: The most common and widely used box style. It's made from a single piece of corrugated board. All four flaps on both the top and bottom are the same length. The outer flaps (usually the longer ones) meet in the center of the box when closed. It has a manufacturer's joint (glued, stitched, or taped) at one corner. Ships flat.

  • Pros: Economical to produce, easy to erect and close (usually with tape), efficient material usage, minimal waste during manufacturing.

  • Cons: The gap between the inner flaps on the top and bottom may require internal packaging (like pads or fill) for flat products. The meeting point of the outer flaps can be a point of weakness under heavy top pressure if not properly supported internally or by the contents.

  • Typical Uses: General shipping and storage for a vast array of products, from consumer goods to industrial parts.

Half Slotted Container (HSC) - FEFCO 0200

Half Slotted Container (HSC)

  • Description: Essentially an RSC without one set of flaps (either top or bottom). It has a manufacturer's joint and one open face.

  • Pros: Allows for easy top loading of products. Often used as a storage bin or paired with a separate telescoping cover (like a FEFCO 03xx style lid).

  • Cons: Requires a separate lid or cover if the contents need to be fully enclosed. Stacking strength is significantly reduced without a supportive cover.

  • Typical Uses: Storage bins, display trays, component packaging, often used as the bottom part of a telescoping box set.

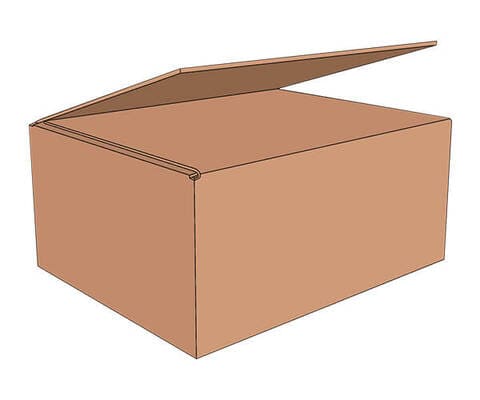

Full Overlap Slotted Container (FOL) - FEFCO 0203

Full Overlap Slotted Container (FOL)

  • Description: A single-piece box where all flaps are the same length, equal to the width of the box. When closed, the outer flaps fully overlap across the entire width of the box.

  • Pros: Provides extra strength and cushioning on the top and bottom surfaces due to the double layer of board. Offers better protection against rough handling and allows for better stacking without needing full surface contact on the top/bottom.

  • Cons: Uses more corrugated board than an RSC. Can be slightly more challenging to pack if the contents don't provide internal support for the flaps.

  • Typical Uses: Packaging heavy or fragile items, stacking applications where extra top/bottom compression strength is needed.

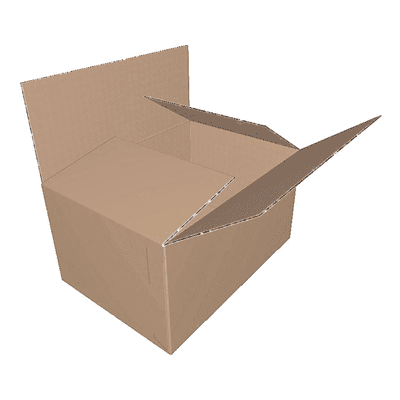

Overlap Slotted Container (OSC) - FEFCO 0202

Overlap Slotted Container (OSC)

  • Description: Similar to an FOL, but the outer flaps overlap by a specified amount, less than the full width.

  • Pros: Useful for long, narrow boxes where the inner flaps wouldn't meet, preventing the outer flaps from pulling apart. Adds strength to the top and bottom panels.

  • Cons: Uses more board than an RSC.

  • Typical Uses: Long, narrow products where flap security and top/bottom strength are important.

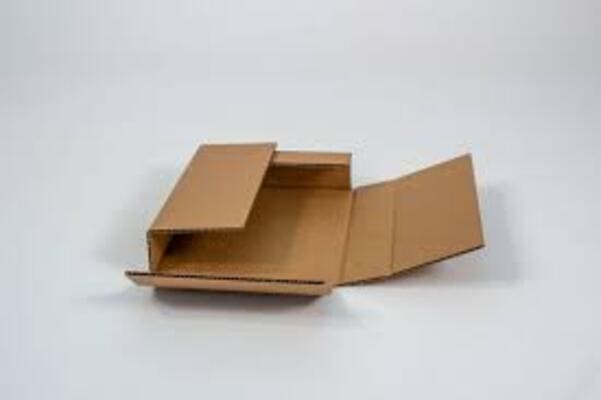

One Piece Folder (OPF) / Book Wrap / Mailer - FEFCO 0401

One Piece Folder (OPF)

  • Description: Constructed from a single piece of board that is scored and slotted to fold around the product. Typically has flaps that form the sides and ends, with extended flaps that meet to form the top. Often includes scoring to accommodate variable product thickness.

  • Pros: Excellent fit for flat items, minimizes material usage, provides a snug package that reduces movement, efficient for wrapping flat goods, can be quick to assemble, often self-locking or easy to tape.

  • Cons: Limited in terms of vertical compression strength compared to RSC or FOL. Best suited for relatively flat, non-bulky items.

  • Typical Uses: Books, framed pictures, electronic components, literature, mail-order items.

Five Panel Folder (FPF) - FEFCO 0410

Five Panel Folder (FPF)

  • Description: Made from a single piece of board designed to create a long box. It has five main panels that fold to form the sides and bottom. An extension of one side panel folds over to create a fifth panel that covers an entire side or the top, providing extra strength and security.

  • Pros: Creates a very strong box, particularly along the sides (often triple thickness where the fifth panel overlaps). Ideal for long, narrow items. Relatively easy to assemble.

  • Cons: Less universally applicable than RSC.

  • Typical Uses: Long items like golf clubs, umbrellas, rolled carpets or fabrics, fluorescent tubes.

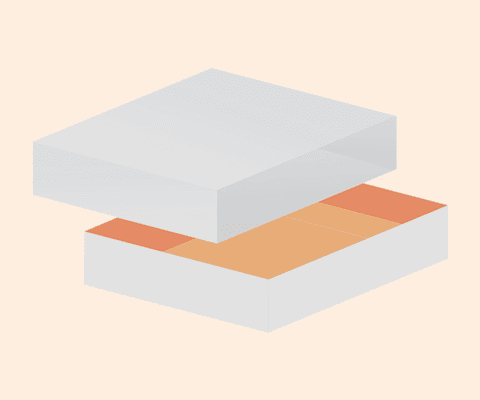

Telescoping Boxes - FEFCO 03xx Series (e.g., Full Telescope Half-Slotted Box - FEFCO 0310)

Telescoping Boxes

  • Description: These boxes consist of two or more pieces, typically a separate base (like an HSC) and a lid that "telescopes" or slides down over the base. The depth of overlap can vary.

  • Pros: Provides double-wall protection on the sides and corners where the lid and base overlap, offering enhanced cushioning and stacking strength in these areas. Can sometimes accommodate items of variable height if the base and lid are tall enough. Offers a distinct lift-off lid presentation.

  • Cons: Requires handling and assembling two separate pieces. Can potentially use more board than a single-piece box of similar size.

  • Typical Uses: Shoe boxes, gift boxes, premium retail packaging, electronics, items requiring strong side and corner protection, applications valuing the unboxing experience.

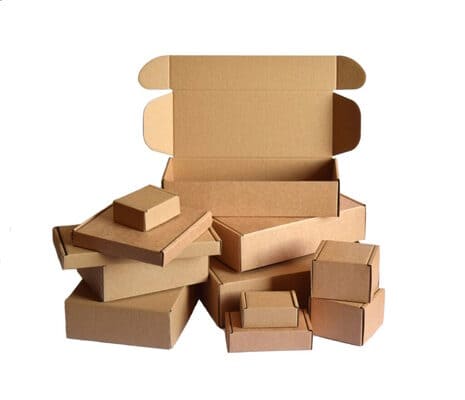

Die-Cut Boxes - Broad Category (Many FEFCO codes, e.g., 04xx, 07xx, and custom designs)

Die-Cut Boxes

  • Description: Unlike standard slotted or folded boxes made with simple cuts and scores, die-cut boxes are created using a custom die (a sharp tooling board). This allows for intricate shapes, complex folds, and integrated features that cannot be achieved with standard tooling. They can be one-piece or multi-piece.

  • Pros: Highly customizable to fit the exact product dimensions and shape. Can incorporate features like handles, windows, display panels, perforated tear-strips, and self-locking tabs (eliminating the need for tape or glue). Offers superior branding and presentation opportunities.

  • Cons: Requires an initial investment in the custom die. Unit cost is often higher than standard boxes, especially for lower volumes. Manufacturing complexity can be greater.

  • Typical Uses: Retail product packaging, subscription boxes, mailer boxes with unique openings, display packaging, custom-fit internal packaging and dunnage, pizza boxes (often FEFCO 0421 or similar).

Beyond the Basics: Other Style Variations (Optional/Brief)

While the styles above cover most needs, the world of corrugated design is vast. Other variations include:

  • Self-Erecting Boxes (FEFCO 07xx): These boxes are pre-glued in such a way that they pop open and form their shape automatically when pressure is applied, requiring minimal assembly. Examples include some types of gift boxes or retail display bins.

  • Octagonal Bins (FEFCO 0295): Large, heavy-duty eight-sided containers, often used for bulk shipping of granular or large industrial products.

Choosing the Right Style for Your Needs

Selecting the ideal corrugated box style is a critical decision that impacts everything from product integrity during transit to the efficiency of your packing line and the final impression on your customer. There's no single "best" style; the right choice depends entirely on your specific requirements.

Here are the key factors to consider:

  • Product Characteristics: What are the dimensions, weight, fragility, and shape (is it flat, long, bulky, irregular) of the item being packaged? (e.g., a heavy, fragile vase needs a different style than a stack of t-shirts).

  • Required Protection Level: How much cushioning, stacking strength, and puncture resistance does the product need? Will it be exposed to rough handling?

  • Shipping and Handling Environment: How will the package be transported? (e.g., Palletized freight, individual parcel shipping, international vs. domestic). What are the typical storage conditions?

  • Assembly and Packing Process: Will boxes be manually assembled and packed or require compatibility with automated packaging machinery? How quickly do boxes need to be erected and filled? (Self-erecting or auto-lock bottoms are faster for manual packing).

  • Unboxing and Presentation: Is the opening experience part of the brand? For retail or gift items, a lift-off lid (telescoping) or unique die-cut opening might be preferred over simply cutting tape on an RSC.

  • Printing and Branding Requirements: How important is the visual appearance? Do you need high-quality graphics directly on the box? (Flat surfaces of OPF, FPF, Die-Cut, or using a liner optimized for printing on any style).

  • Cost Considerations: Balance the cost of the board itself (material usage varies by style) with manufacturing complexity (tooling for die-cut vs. simple scoring/slotting for RSC), assembly labor/automation cost, and potential costs of product damage from inadequate protection.

  • Storage and Logistics: How much warehouse space is available for storing flat box blanks? How are boxes unitized and shipped (e.g., number of boxes per pallet)?

By carefully evaluating these factors, you can narrow down the options and select the box style that offers the best balance of protection, efficiency, cost-effectiveness, and presentation for your specific application.

Conclusion

The world of corrugated box styles is rich and varied, offering a specific structural solution for nearly every packaging challenge. From the economical and ubiquitous RSC to the highly customizable die-cut creations, each style possesses unique characteristics, advantages, and ideal applications. The FEFCO code system provides a valuable framework for understanding and communicating these diverse designs.

Choosing the correct corrugated box style is a critical step in effective packaging – one that directly impacts product safety, logistics, and cost. It requires careful consideration of the product itself, the supply chain it will traverse, and the desired end-user experience.
